Detectable Underground Warning Tape

Premium Underground Marking Tape: Reliable Protection Below Ground

Our underground detection tape features a durable aluminum core laminated with polyethylene for long service life. Engineered to perform from -60°F to 250°F, the detectable underground electrical warning tape maintains integrity in extreme cold, heat, and moisture. At 0.01 inches thick, with permanently imprinted black legends, these underground burial tapes make buried lines easy to locate using non-ferrous locators. Each roll measures 2 inches wide by 500 feet long.

Get a Quote

Underground Detection Tape Specification

Material	Aluminum+PE
Width	2 inches
Length	500 ft/roll
Thickness	0.01 inches
Temperature Resistance	-60°F to 250°F
Packaging	4 pcs/box or customized upon request

Detectable Underground Warning Tape Features

As one of the core detectable warning tape manufacturers in China, we provide industry‑standard safety and marking solutions designed for maximum performance and durability. Our expertise guarantees products that meet rigorous industry standards. Here are some key features of our detectable underground marking tape:

001- Exceptional Strength and Reliability: Our detectable underground warning tape is constructed from uniquely durable materials, engineered to perform in extreme environments with a temperature resistance range from ‑60°F to 250°F.

002- Premium Multi‑Layer Construction: The underground warning tape detectable consists of aluminum laminated with polyethylene at a 5‑mil thickness, offering superior protection and longevity when buried underground.

003- Long‑Lasting Visibility: Each roll of underground detection tape features permanently imprinted black lettering, ensuring that caution messages remain clear and easily readable without fading over time.

004- Efficient Line Detection: The aluminum core within our underground line warning tape makes buried utility lines easy to locate using non‑ferrous locators, improving excavation safety and accuracy.

Products

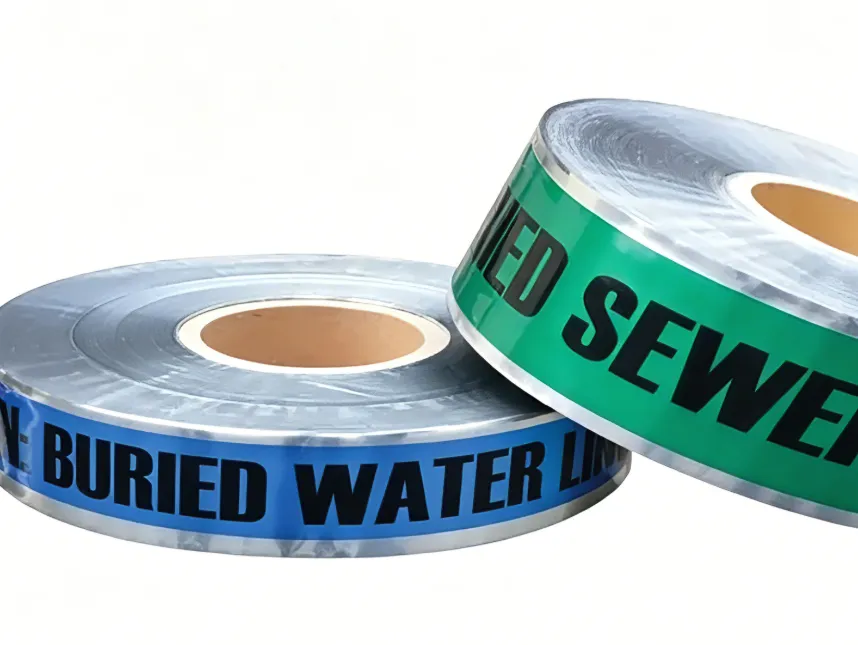

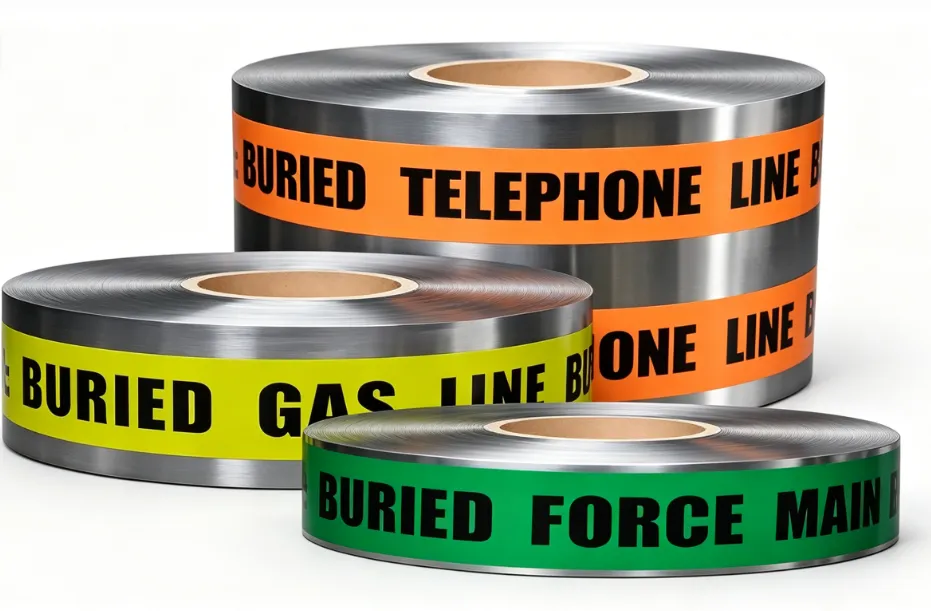

Underground Detection Tape: Locate Lines in Seconds

Our underground caution tape incorporates built-in highly conductive and detectable components, with highly sensitive conductive/magnetic materials uniformly added to the substrate. It is perfectly matched with conventional pipeline detectors, providing a stable and clear signal response. Our electrical buried warning tape also boasts excellent signal penetration, easily penetrating different geological layers such as soil, gravel, and backfill. Even in deep burial environments, it can be quickly detected by equipment without attenuation or delay.

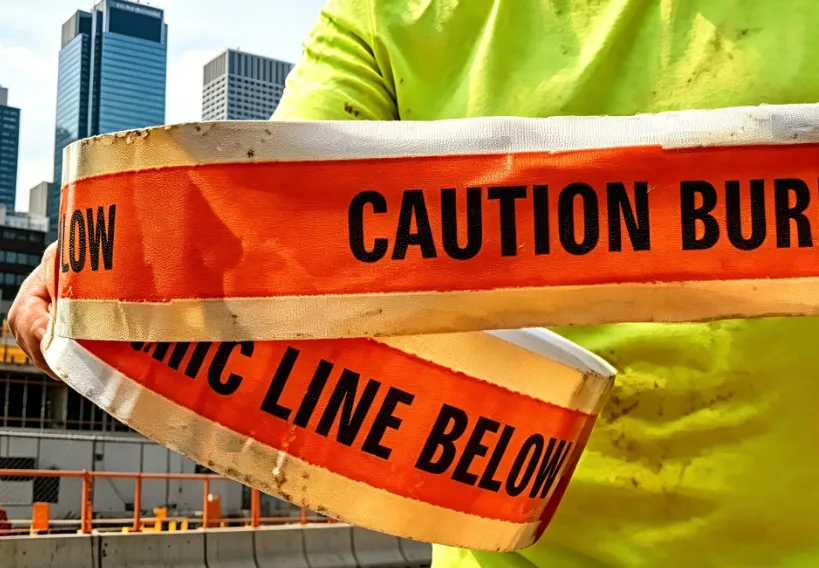

Keezon Underground Caution Tape, Wide Temperature Resistance for All Climates

Wide Applicability and Exceptional Weather Resistance: Our underground locator tape use is engineered to withstand not only the extreme cold and frozen ground of northern regions—including during winter construction—but also the intense heat of the South and the long-term temperature fluctuations within backfilled soil layers. Consequently, it remains free from brittleness, deformation, or failure in virtually any underground environment.

Underground Marking Tape FAQs

What is the difference between underground detection tape and non-detectable warning tape?

Underground Detection Tape: Features a built-in metal layer, allowing instruments to detect and quickly pinpoint the location of underground pipelines.

Non-detectable Warning Tape: Contains no metallic material; it becomes visible only when physically unearthed during excavation and cannot be detected by instruments. It is suitable only for general, low-risk sites.

What are the advantages of your underground burial tape?

Industrial-grade, heavy-duty material: tear-resistant and age-resistant.

Stable detectability: ensures rapid detection and precise localization.

Ultra-wide temperature range (-60°F to 250°F): suitable for extreme climates in any region.

Compliant with APWA color codes; supports custom printing specifications.

Does your tape meet APWA color code standards?

Yes. Our underground warning tape fully complies with the APWA color code, strictly adhering to the specific standard colors designated for gas, power, telecommunications, and water/sewage systems. We can also customize the color scheme and warning text according to specific project requirements to ensure compliance for engineering acceptance.
